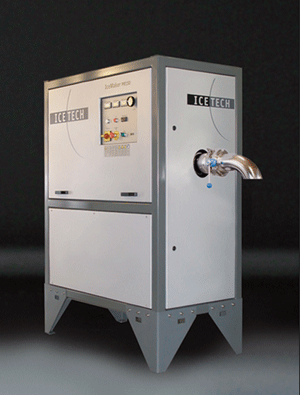

IceMaker PR150
IceMaker PR150
Production of high-density dry ice pellets.
The IceTech IceMaker presents a revolutionary alternative to existing dry ice making machines. The IceMaker provides non-stop supply of high-density dry ice pellets from a source of low temperature liquid carbon dioxide.
From a storage tank, a regulated supply of liquid CO2 is expanded to low pressure and forms the dry ice snow which is then pressed through a multiport extruder die by a single acting horizontal reciprocating piston.
The IceMaker is placed in a closed steel cabinet, which has been muffled to limit the noise level and includes the latest technical advances in heat exchangers as it enables the user to limit startup time and improve the quality of the pellets compared to existing products on the market
IceMaker PR150
Production of high-density dry ice pellets.

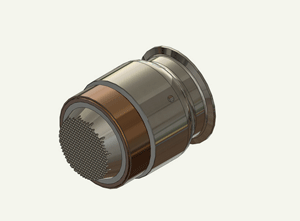

Extruder Plate
|
Extruder Plate: 3 mm, complete |
Pellets Size
Weight |
 |
Extension legs
|
Set of extension legs for pelletizer |
Dimensions m/ft Length: 10 / 32 Item no.: 105036 |
 |
Key
| Key for extruder plate: |
Weight g: 600 lbs: 1.322 Item no.: 109031 |
 |
IceMaker PR150
Production of high-density dry ice pellets.
| Dimensions mm/inch: |
Длина: 1300 / 51 Ширина: 700 / 27.5 Высота: 1625 / 64 Высота: 1845 / 72.6 (incl. ext. legs) |
| Weight: | kg: 700 / lbs: 1543 |
| Rated Output: |
kg/h: up to 120-200 lbs/h: up to 265-441 of high quality dry ice pellets, depending on the extruder plate applied |
| Pellet Size: |
Диаметр: mm : 1.7 - 3 - 6 - 10 - 13 or 16 inch: 0.066 - 0.11 - 0.23 - 0.39 - 0.51 or 0.62 |
|
Cylindrical - length varying from: |
mm: 50 to 100 inch: 1.96 to 3.93 |
| Inlet Liquid CO2 Pressure: |
bar: 16 - 22 psi: 232 - 319 |
| Liquid CO2 Dryness Fraction: |
The water content should not exceed 35 ppm and should not be less than 5 ppm – or equivalent to a dewpoint temperature of -66°C to -51°C (-86.8°F to -59.8°F). NOTE: The liquid CO2 supply must be completely free of oil and must have a purity of min. 99.9%. |
| Liquid CO2 Supply Pipe: |
Internal dia. 20 mm (0.8 inch), very well insulated with a minimum number of bends and fittings. NOTE: If over 20 m (65.6 feet) in length, always use an internal dia. of 25 mm (1 inch). |
| Outlet Pipe: | Internal dia. 50 mm (2 inch) |
| Power Supply: | 3 x 400 V AC + PE, 50/60 Hz, Imax. 16 A |
IceMaker PR150
Production of high-density dry ice pellets.

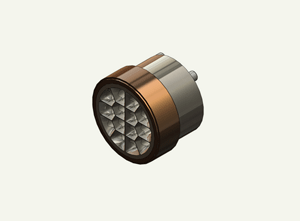

Extruder Plate
|
Extruder Plate: 3 mm, complete |
ellets Size
Weight |
|
|

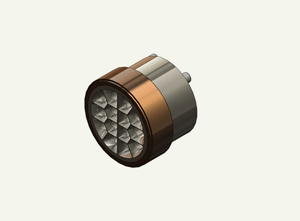

Extruder Plate: 10 mm, complete |
Pellets Size mm: 10 inch: 0.393
Weight |
 |
|
Extruder Plate: 16 mm, complete |
Pellets Size mm: 16 inch: 0.629
Weight |
 |

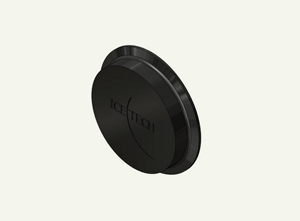

Plug
| Cap for Pelletizer PR150 / PR300 |
Вес: Item no.: 500981 |
 |

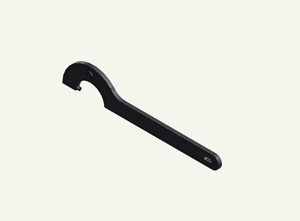

Key
| Key for extruder plate |
Weight g: 600 / lbs: 1.322 Item no.: 109031 |
|

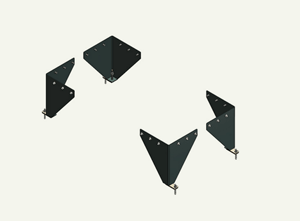

Extension legs
|
Set of extension legs for pelletizer |
Item no.: 105036 |
|
Mounting Kit
|
Mounting kit for installation of IceMaker PR150 and additional CO2 filtration |
Weight Item no.: 105062 |
Service Kit
|
1,000 + 2,000 hour Service kit for Pelletizer PR150 |
Item no.: 501271 |
