Production of high-density dry ice pellets.

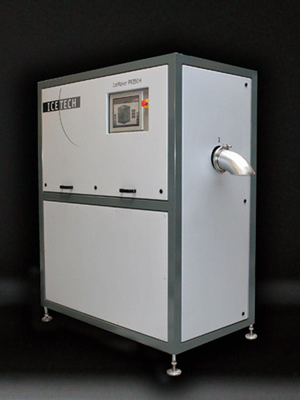

The IceMaker PR350H from IceTech presents a state of the
art Dry Ice Pelletizer packed with features for easier operation,
swift production shifts and high capacity.
|
 |
|
The IceMaker PR350H produce high quality Dry Ice pellets from stroke one. This is secured by the closed chamber technology which also ensures fast production shifts and an extreme short start up time.. |
 |
|
The automatic change of extruder plates also removes downtime
and reduces loss of valuable CO2. The pellet length and quality are
optimized using the new pelletizer, and the complete version of the
IceMaker PR350H can produce two sizes of pellets without changing
the extruder plates. The IceMaker PR350H contains lots of technical
features compared to existing products on the market.
The automatic change of extruder plates is an option for the

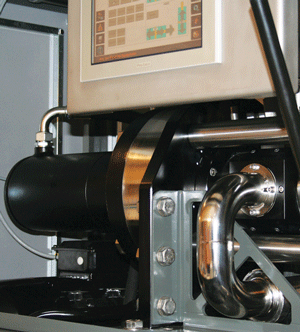

IceMaker PR350H. The hydraulic unit use logic components for higher
performance. |
 |
|
The machine parts are protected by a moisture-free enclosure,
which also reduces the noise level to a minimum (below 75 dB(A).

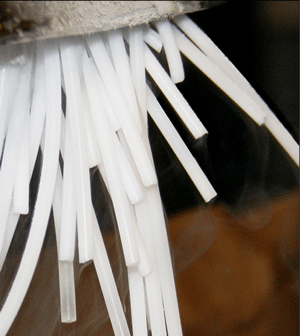

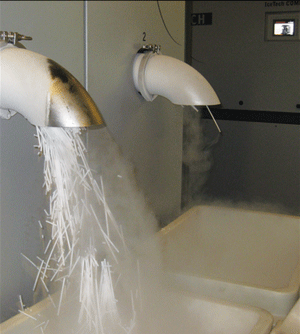

The IceMaker PR350H provides a non-stop supply of high-density
dry ice pellets. The source of raw material for the production of pellets
is liquid carbon dioxide conserved at low temperature in a storage tank. |
 |
|
The liquid CO2 flows into the machine in a regulated manner and is
transformed into CO2 snow which is then pressed through an
extruder plate by means of the horizontal movement of a hydraulic
driven piston.
|
 |
|

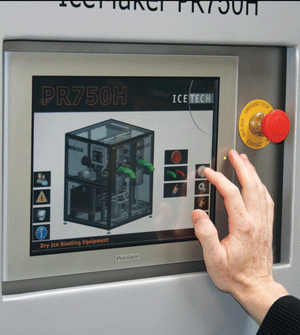

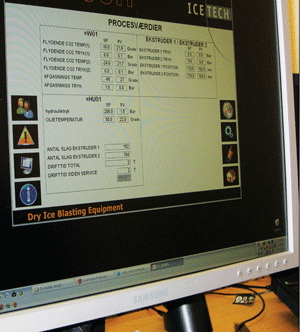

УThe IceMaker PR350H is built on the latest technical advances in industrial PC controls which includes a 12.1” color touch display optimized for easy and intelligent control via multi-lingual context. It’s also prepared for easy integration in your company’s control system. It can be a simple remote start/stop button or a more sophisticated solution via a BUS/Ethernet connection. |
 |
|
If the IceMaker PR350H is connected to your LAN or Internet, the entire display can be transferred to the computer desktop of your choice – anywhere in the world.. |
 |
IceMaker PR350H
Production of high-density dry ice pellets.
| Dimensions mm/inch: |
Length: 1500 / 59 |
| Weight: | kg: 1000 / lbs: 2204 |
| Rated Output: |
kg/h: up to 350 lbs/h: up to 772 of high quality dry ice pellets, depending on the extruder plate applied |
| Pellet Size: |
Diameter: mm : 3 - 10 or 16 inch: 0.11 - 0.39 or 0.62 |
|
Cylindrical - length varying from: |
mm: 50 to 100 inch: 1.96 to 3.93 |
| Inlet Liquid CO2 Pressure: |
bar: 16 - 22 psi: 232 - 319 |
| Liquid CO2 Dryness Fraction: |
The water content should not exceed 35 ppm and should not be less than 5 ppm – or equivalent to a dewpoint temperature of -66°C to -51°C (-86.8°F to -59.8°F). NOTE: The liquid CO2 supply must be completely free of oil and must have a purity of min. 99.9% |
| Liquid CO2 Supply Pipe: |
Internal dia. 20 mm (0.8 inch), very well insulated with a minimum number of bends and fittings. NOTE: If over 20 m (65.6 feet) in length, always use an internal dia. of 25 mm (1 inch) |
| Outlet Pipe: | Internal dia. 125 mm (5 inch) |
| Max. Back Pressure on Revert Gas: |
Bar: 0 - 1 psi: 0 - 14.5 |
| Источник питания: |
3 x 400 V AC + PE, 50Hz, Imax. 32 A |
| Номинальная мощность: |
kW: 11 Hp: 15 |
| Noise level below 75 db(A) |
IceMaker PR350H
Production of high-density dry ice pellets.

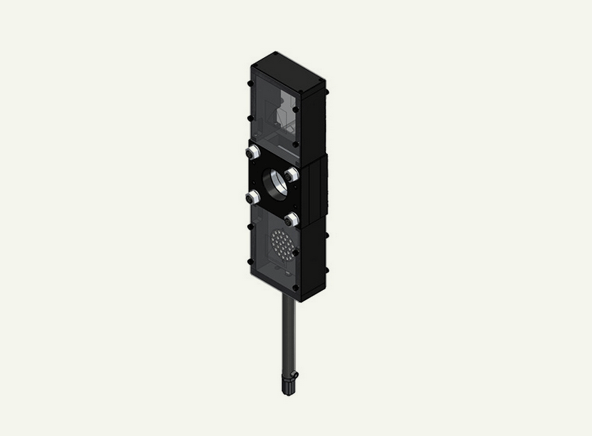

Process unit
| Process unit |
Weight: kg: 57,5 lbs: 125.6 Item no.: 501415 |
 |
|

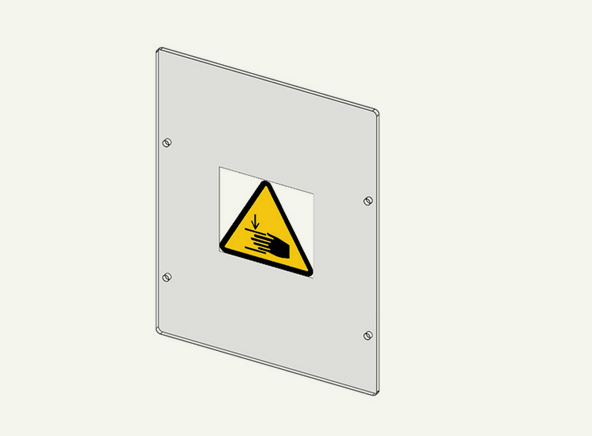

Lower Screen for die holder |
Weight: g: 512 lbs: 1.128 Item no.: 501330 |
 |
|

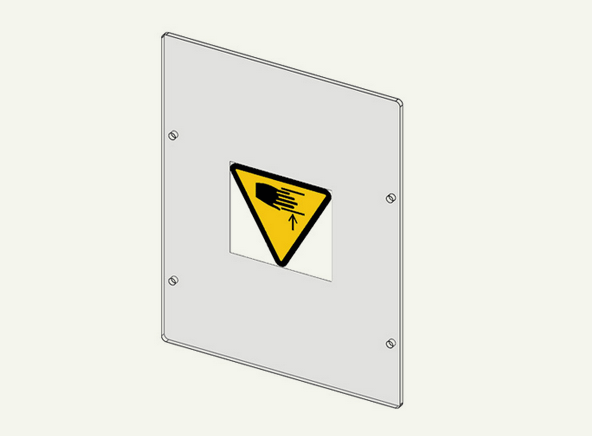

Upper Screen for die holder |
Weight: g: 512 lbs: 1.128 Item no.: 501324 |
 |

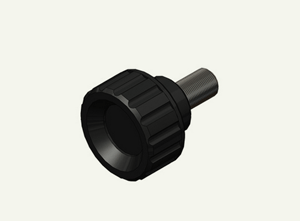

| Grip knob for screen |
Weight: g: 6 lbs: 0.013 Item no.: 501332 |
 |
Outlet Sprout

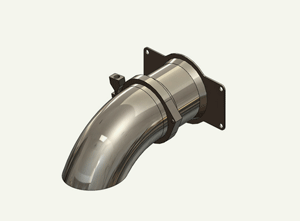

| Outlet Sprout |
Weight: g: 1244 lbs: 2.742 Item no.: 501480 |
 |

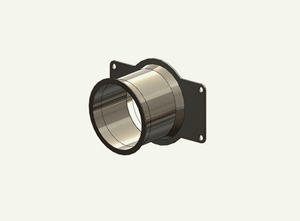

| Flange for Outlet Sprout |
Weight: g: 1111 lbs: 2.449 Item no.: 501481 |
 |
|

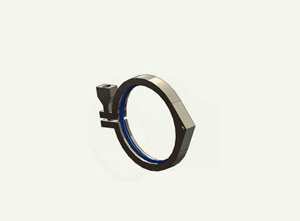

Clamp for Outlet Sprout Incl. Packing |
Weight: g: 689 lbs: 1.518 Item no.: 501482 |
 |
|
|
Technical Support
| Telephone |
ceTech technical staff will guide you through... |
| GSM Modem or WAN/LAN |
IceTech technical staff can connect to the PLC anywhere in the world via GSM Modem or WAN/LAN for troubleshooting |
Technical Documtation
| User manual |
Contains step-by-step illustration for the differet operations, -online webinars and tutorials. |
| Sparepart lists |
Exploded assembly drawings and listet sparepart. |
| Diagrams |
Wiring diagram and flow diagram |

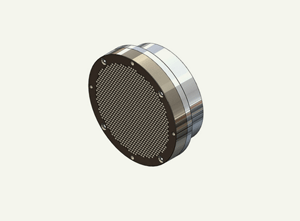

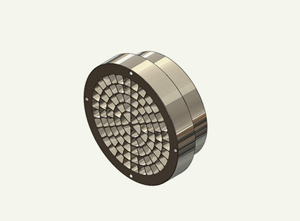

Extruder Plate
|

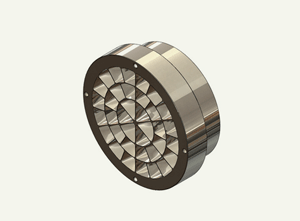

Extruder Plate: 3 mm, complete |
Pellets Size
Weight |
 |
|
Extruder Plate: 10 mm, complete |
Pellets Size mm: 10 inch: 0.393
Weight |
 |
|
Extruder Plate: 16 mm, complete |
Pellets Size mm: 16 inch: 0.629
Weight |
 |
Extruder Plate:
Upon request IceTech can supply
18 mm / 0.708inch extruder plates
Hydraulic oil
|
Hydraulic oil ESSO Marcol 152 32 |
Amount Item no.: 500935 |
Service Kit
2,500 hour
Service kit for Pelletizer PR1500H
5,000 hour
Service kit for Pelletizer PR1500H
