IceMaker PR750H

Описание Технические характеристики Комплектность PR750H Аксессуары Скачать

IceMaker PR750H Production of high-density dry ice pellets. The IceMaker PR750H from IceTech represents a state of the art Dry Ice Pelletizer packed with features for easier operation, swift production shifts and high capacity.
The IceMaker PR750H produce high quality Dry Ice pellets from stroke one. This is secured by the closed chamber technology which also ensures fast production shifts and an extreme short start up time.
The automatic change of extruder plates also removes downtime and reduces loss of valuable CO2. The pellet length and quality are optimized using the new pelletizer, and the complete version of the IceMaker PR750H can produce two sizes of pellets at the same time. The IceMaker PR750H contains lots of technical features compared to existing products on the market. For instance a heat exchanger is used to minimize waste of energy during the sublimation process. The hydraulic unit use logic components for higher performance.
The machine parts are protected by a moisture-free enclosure, which also reduces the noise level to a minimum (below 75 dB(A). The IceMaker PR750H provides a non-stop supply of high-density dry ice pellets. The source of raw material for the production of pellets is liquid carbon dioxide conserved at low temperature in a storage tank.
The liquid CO2 flows into the machine in a regulated manner and is transformed into CO2 snow which is then pressed through an extruder plate by means of the horizontal movement of a hydraulic driven piston.
The IceMaker PR750H is built on the latest technical advances in industrial PC controls which includes a 12.1” color touch display optimized for easy and intelligent control via multi-lingual context. It’s also prepared for easy integration in your company’s control system. It can be a simple remote start/stop button or a more sophisticated solution via a BUS/Ethernet connection.
If the IceMaker PR750H is connected to your LAN or Internet, the entire display can be transferred to the computer desktop of your choice – anywhere in the world..

IceMaker PR750H

Production of high-density dry ice pellets.

Dimensions mm/inch:	Length: 1500 / 59 Width: 1500 / 59 Height: 1800 / 71 Height: 1845 / 73.6 (incl. ext. legs)
Weight:	kg: 1700 / lbs: 3747
Rated Output:	kg/h: up to 750 lbs/h: up to 1653 of high quality dry ice pellets, depending on the extruder plate applied
Pellet Size:	Diameter: mm : 3 - 10 or 16 inch: 0.11 - 0.39 or 0.62
Cylindrical - length varying from:	mm: 50 to 100 inch: 1.96 to 3.93
Inlet Liquid CO₂Pressure:	bar: 16 - 22 psi: 232 - 319
Liquid CO₂ Dryness Fraction:	The water content should not exceed 35 ppm and should not be less than 5 ppm – or equivalent to a dewpoint temperature of -66°C to -51°C (-86.8°F to -59.8°F). NOTE: The liquid CO₂supply must be completely free of oil and must have a purity of min. 99.9%
Liquid CO₂ Supply Pipe:	Internal dia. 20 mm (0.8 inch), very well insulated with a minimum number of bends and fittings. NOTE: If over 20 m (65.6 feet) in length, always use an internal dia. of 25 mm (1 inch)
Outlet Pipe:	Internal dia. 125 mm (5 inch)
Max. Back Pressure on Revert Gas:	Bar: 0 - 1 psi: 0 - 14.5
Источник питания:	3 x 400 V AC + PE, 50Hz, Imax. 32 A
Номинальная мощность:	kW: 11 Hp: 15
Noise level below 75 db(A)

IceMaker PR750H Production of high-density dry ice pellets.



Process unit

Process unit	Weight: kg: 57,5 lbs: 125.6 Item no.: 501415
Lower Screen for die holder	Weight: g: 512 lbs: 1.128 Item no.: 501330
Upper Screen for die holder	Weight: g: 512 lbs: 1.128 Item no.: 501324
Grip knob for screen	Weight: g: 6 lbs: 0.013 Item no.: 501332

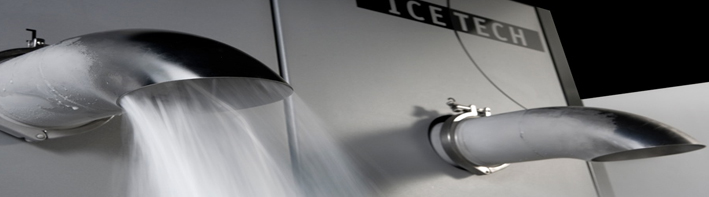

Outlet Sprout

Outlet Sprout	Weight: g: 1244 lbs: 2.742 Item no.: 501480
Flange for Outlet Sprout	Weight: g: 1111 lbs: 2.449 Item no.: 501481
Clamp for Outlet Sprout Incl. Packing	Weight: g: 689 lbs: 1.518 Item no.: 501482

Technical Support

Telephone:	IceTech technical staff will guide you through...
GSM Modem or WAN/LAN	IceTech technical staff can connect to the PLC anywhere in the world via GSM Modem or WAN/LAN for troubleshooting

Technical Documtation

User manual	Contains step-by-step illustration for the differet operations, -online webinars and tutorials.
Sparepart lists	Exploded assembly drawings and listet sparepart.

IceMaker PR750H

Production of high-density dry ice pellets.

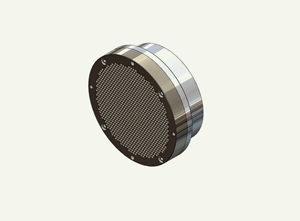

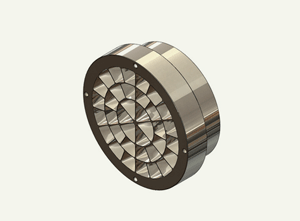

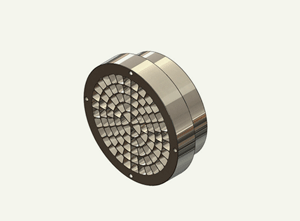

Extruder Plate: 3 mm, complete	Pellets Size mm: 3 inch: 0.118 Weight g: 3027 lbs: 6.673 Item no.: 501478
Extruder Plate: 10 mm, complete	Pellets Size mm: 10 inch: 0.393 Weight g: 3562 lbs: 7.852 Item no.: 501327
Extruder Plate: 16 mm, complete	Pellets Size mm: 16 inch: 0.629 Weight g: 4071 lbs: 8.975 Item no.: 501328
Extruder Plate: Upon request IceTech can supply 18 mm / 0.708inch extruder plates
