Dry Ice Slice / Block Reformer 1000H
IceTech RF2000H
Reforming of Dry Ice Pellets to Airline Dry Ice Slice.
The RF2000H from IceTech represents the state of the art in Dry Ice manufacturing machinery. It is packed with features which translate into ease of operation and unparalleled economic productivity.
Fast product changes, remote production management control and latest generation telemetry, combine to provide optimum output with minimal product losses.
Pellet-to-Slice Reformer is fully automated, with the flexibility to reform 3 mm to 16 mm Dry Ice Pellets
(or nuggets) into 125 x 210 x 25 to 60 mm slices. Reforming pellets into slices reduces dry ice
consumable cost and is safer for the operator compared to traditional block cutting processes.
The pellet-to-slice reforming process eliminates hazards from cutting block and reduces CO2 sublimation loss by ~80% - producing less CO2 "smoke."
The IceTech RF2000H contains lots of technical features compared to existing products on the market.
For instance a heat exchanger is used to minimize waste of energy during the sublimation process.
The hydraulic unit use logic components for higher performance.
The machine parts are protected by a moisture-free enclosure, which also reduces the noise level to a
minimum (below 75 dB(A). The RF2000H provides a non-stop supply of highdensity Dry Ice Slabs.
The source of raw material for the production of slabs is liquid carbon dioxide conserved at low
temperature in a storage tank.
minimum (below 75 dB(A). The RF2000H provides a non-stop supply of highdensity Dry Ice Slabs.
The source of raw material for the production of slabs is liquid carbon dioxide conserved at low
temperature in a storage tank.
If the IceTech RF2000H is connected to your LAN or Internet, the entire display can be transferred
to the computer desktop of your choice– anywhere in the world. This allows online support by
using diagnostic software on the industrial PC.
It only takes the touch of a button,
The IceTech RF2000H is built on the latest technical advances in industrial PC controls which includes a 12.1” color touch display optimized for easy and intelligent control via multi-lingual context. It only takes a touch of a button to change your slice thickness. .
IceTech RF2000H
Reforming of Dry Ice Pellets to Airline Dry Ice Slice.
|
Dimensions mm/inch: |
Length: 1526 / 60 Width: 1210 / 48 Height: 2480 / 98 |
| Weight: | kg: 2000 / lbs: 4409 |

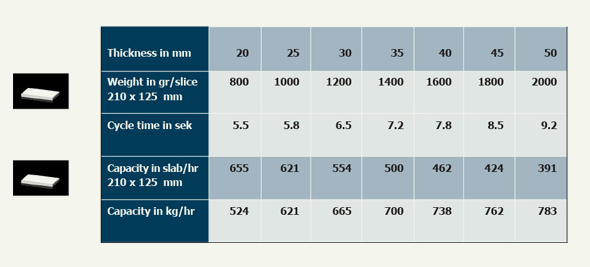

| Rated Output: |
Up to 800 slabs/hour (20 mm) kg/h: 655 lbs/h: 1444 of high-quality Dry Ice Slabs, depending on the size of slabs chosen. |
| Slabs Dimensions: |
Length x Width mm : 210 x 125 inch: 8 x 5 Thickness: mm: 20 - 25 - 30 - 35 - 40 - 45 - 50 - 55 - 60 inch: 0.8 - 0.10 - 1.2 - 1.4 - 1.6 - 1.8 - 1.96 - 2.1 - 2.3 |
| Inlet Liquid CO2 Pressure: |
bar: 16 - 22 psi: 232 - 319 |
| Power Supply: |
3 x 400 V AC + PE, 50Hz Imax.: 32 A |
| Rated Power: |
kW: 11 Hp: 15 |
| Noise Level: | Below 75 db(A) |
